Modular means adaptable
Siegling Prolink offer a wide product range with many different module designs. Modules within individual product series can easily be combined. As a result, Siegling Prolink modular belts can be customized to suit individual conveying and processing tasks. We will help you identify the optimal solution for your specific needs.
Siegling Prolink is used successfully in a broad range of applications in industries such as:
- fruit and vegetable processing
- baked goods manufacturing
- meat, poultry and seafood processing
- automotive and tire manufacturing
- logistics
In these areas, Siegling Prolink modular belts often play a significant role beyond conveying.
Benefits of modular belting
Modular belts are robust and durable and can handle conveying and processing tasks which may not be possible with conventional conveyor belting materials and types.
When assembled and installed, modular belts are endless, but if damage occurs, individual modules can quickly be replaced, thereby minimizing down time and maintenance costs. Modular belts can be supplied in any length and width and if needed, functional modules can be added at any time so belt properties can be changed if required.
Design and Quality
Siegling Prolink modular belts can be customized by using modules with different surface patterns and openings. Side guards, profiles and other accessories such as friction pads, wheel stoppers and Hold Down tabs can be added to most belt series, thereby optimizing the application. Special modules and accessories for further customization are available, or can be developed according to customer specifications.
Our products are manufactured in accordance with the ISO 9001 QM-system which is audited and updated quarterly.
Manufacturing tolerances, on-going testing and monitoring performed by our highly trained staff ensure a consistent and high level of product quality.
Please contact us if you have a specific request requiring a customized conveying application.

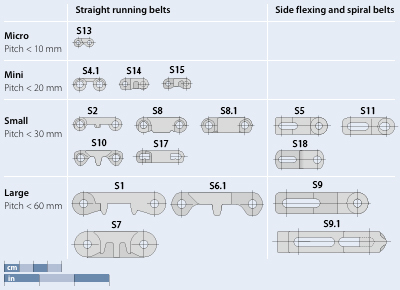

Modular belt series – Overview
Series 1 | Pitch: 50 mm (2 in)
Description: Medium to heavy-duty belt for industrial conveying tasks. Closed hinge design.
Series 2 | Pitch: 25 mm (1 in)
Description: Light-duty belt for food, container handling and industrial use. Open hinge design.
Series 4.1 | Pitch: 14 mm (0.55 in)
Description: Light to medium-duty belt for food and non-food use. Small pitch allows tight product transfers using nose bars or sprockets. Open hinge design.
Series 5 | Pitch: 25 mm (1 in)
Description: Light to medium-duty radius and spiral belt with stainless steel hinge pins. Exceptionally strong and versatile side flexing belt with large open area.
Series 6.1 | Pitch: 50 mm (2 in)
Description: Medium to heavy-duty belt designed specifically for tasks requiring the highest hygiene standards in meat, poultry and seafood processing, including cutting, deboning and skinning lines. Easy to clean. Open hinge design.
Series 7 | Pitch: 40 mm (1.6 in)
Description: Heavy-duty belt with superior pull strength and excellent durability for industrial applications. Designed for heavy loads, such as worker belts for the automotive industry, vehicle conveying, etc. Closed hinge design.
Series 8.1 | Pitch: 25.4 mm (1 in)
Description: Medium to heavy-duty belt for industrial applications. Closed hinge design.
Series 9 | Pitch: 50 mm (2 in)
Description: Medium to heavy-duty radius and spiral belt with stainless steel hinge pins. Exceptionally strong and versatile side flexing belt with large open area.
Series 9.1 | Pitch: 50 mm (2 in)
Description: Medium to heavy-duty spiral belt with stainless steel hinge pins. Exceptionally strong side flexing belt with large open area, clip-free design and adjustable belt radius of 1.3 to 2.9 x belt width.
Series 10 | Pitch: 25.4 mm (1 in)
Description: Light to medium-duty belt for hygiene-sensitive products. Easy to clean. Open hinge design.
Series 11 | Pitch: 25 mm (1 in)
Description: Side flexing belt for conveying lightweight products. This lightweight belt has an exceptionally low turn radius of 1.4 x belt width.
Series 13 | Pitch: 8 mm (0.31 in)
Description: Light-duty micro pitch belt for food and non-food tight-transfer nose bar use. Open hinge design.
Series 14 | Pitch: 12.7 mm (0.5 in)
Description: Medium-duty belt for food and non-food use. Small pitch allows tight product transfers. Bottom design optimized for nose bars. Strong closed hinge design.
Series 15 | Pitch: 12.7 mm (0.5 in)
Description: Light-duty belt for food applications utilizing 12.7 mm (0.5 in) nose bars.
Series 17 | Pitch: 25.4 mm (1 in)
Description: Medium to heavy-duty belt for industrial applications. Closed hinge design.
Series 18 | Pitch: 25.4 mm (1 in)
Description: Light to medium-duty belt for food and non-food applications.
*Please note: Series 3 is replaced by Series 6.1 offering same options in higher quality and improved cleanability.
Load index
The following table shows the changes in load capacity between different materials and over all available series.

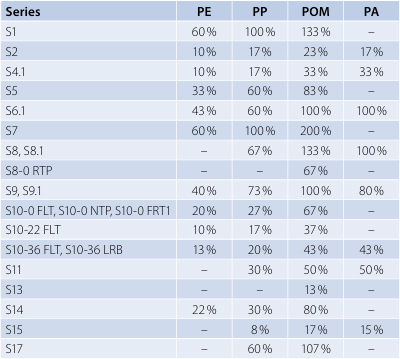

Straight running belts

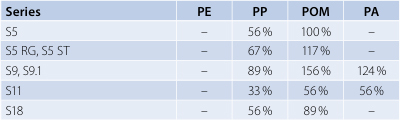

Side flexing and spiral belts
