FULLSAN – Lower Cleaning Costs Higher Hygiene
Fullsan is a new line of homogeneous thermoplastic polyurethane conveyor belts from Fullsan Conveyor Systems. All Fullsan conveyor belts are resistant to contamination from oil, grease, moisture, and bacteria. The belts are very easy to clean, making them particularly suitable for applications with extremely stringent hygiene requirements (dairy, dough preparation, meat and poultry processing, and other food production-related fields).
All Fullsan conveyor belts are available with optional guide bars and baffles to adapt to a wide variety of conveying operations. In addition to standard belt types, reinforced models are available, with a strength layer incorporating fully enclosed aramid fibers. Besides their high hygiene, Fullsan Positive Drive (PD) or Center Drive (CD) conveyor belts offer further advantages: the meshing sprocket teeth drive the belt, reducing slippage and allowing for more precise positioning.
Characteristics & Advantages
Homogenous material with a very smooth surface
❯ Less cleaning required Lower water and energy consumption Cost-efficient operation
Superior mechanical and chemical resistance
❯ Long service life, even when cleaned frequently
FDA, EU and MHLW certification
❯ Can be used safely and in a legally compliant manner in direct contact with food

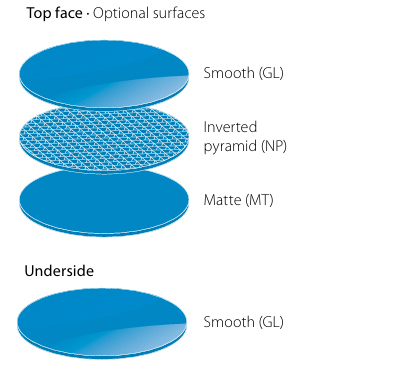

Numerous profiles, side walls and surfaces
❯ Customizable to the type of conveying, process tasks and products
Available as a reinforced version (Pro) with cords
❯ Long conveyors/ heavy loads possible
Form-fit drive (Center Drive/Positive Drive)
❯ Exact positioning and slip-free operation; CD is also troughable

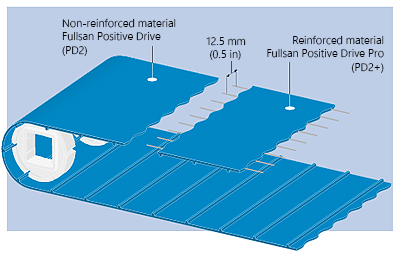

FULLSAN POSITIVE DRIVE
Fullsan Positve Drive is used as a homogenous belt (PD2), or one with fully enclosed cords (PD2+). The flat polyurethane belt width has teeth over the whole belt width and a form-fit drive. As a result, the belts don’t slip and can be positioned very accurately.

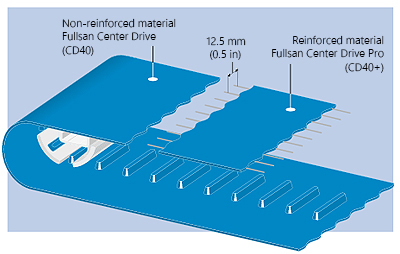

FULLSAN CENTER DRIVE
Fullsan Center Drive is used as a homogenous belt (CD40), or one with fully enclosed cords (CD40+). Depending on the belt width, the flat polyurethane belt width is driven by one, two or three rows of teeth in a form-fit manner. As a result, the belts don’t slip, track automatically and position accurately.

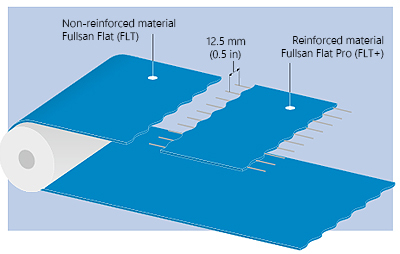

FULLSAN FLAT
Fullsan Flat (FLT) is used as a homogenous belt, or with fully enclosed cords (FLT+). The flat polyurethane belt is friction driven via an end drum.

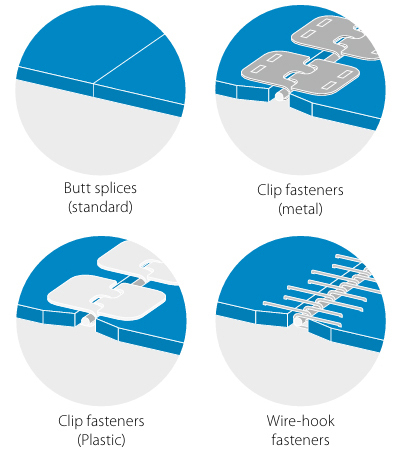

Splice types

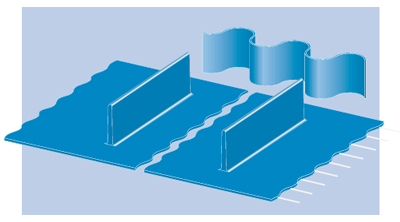

Profiles & Side Walls
Profiles can be welded onto the belts in tight tolerances. Customized profile heights are possible. When belts are driven in a form-fit manner, welding is carried out between the teeth.
