Powerful, quiet, energy efficient: Thanks to its combination of a helical tooth design, aramid tension member and strong rubber, this belt boasts a wealth of inherent advantages. The SilentSync is self-tracking, has a high power capacity and can withstand high temperatures. This makes it an excellent alternative to both traditional timing belts and V-belts.
Conti® SilentSync: More than just a timing belt
Offering an increase in power transmission of up to 80 % and electrical conductivity*, Conti® SilentSync is a high performance upgrade on standard timing belts. The drive belt is up to 19 dB quieter than straight toothed belts in operation, its Helical Offset Tooth (HOT) design merging belt and sprocket into one of the quietest, smoothest and most compact timing belt drives available. The result is continuous tooth engagement that reduces vibration and improves overall system efficiency.
Thanks to the helical toothing, SilentSync belts and sprockets are able to provide greater resistance to ratcheting, more precise alignment, increased power capacity and improved tension distribution – all to better withstand the shearing action of high performance drives. The wide range of possible transmission ratios allows for more design flexibility and lighter, more compact drives.
Product Properties
- Resistant to temperatures between -30 °C (-22 °F) and +130 °C (+266 °F), depending on application
- Very low noise levels
- Electrically conductive to ISO 9563
- Limited oil resistance
- Ozone-resistant
- Aging-resistant
- Maintenance-free

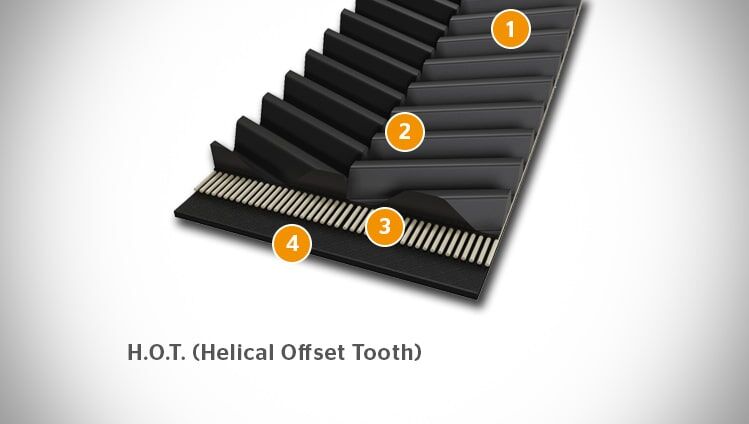

Technical Product Structure
-
Tooth surface: Specially treated fabric
-
Teeth: Synthetic rubber
-
Tension member: Aramid
-
Belt backing: Synthethic rubber

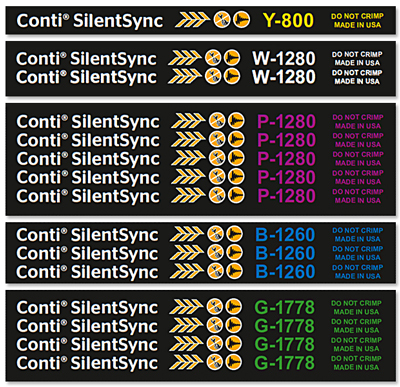

Profile Table
Standard belt widths 8mm pitch
| Y-Yellow |
16 |
8 |
5.5 |
3.01 |
| W-White |
32 |
8 |
5.5 |
3.01 |
| P-Purple |
64 |
8 |
5.5 |
3.01 |
Standard belt lengths 8mm pitch
| Y-640 |
W-640 |
- |
| Y-720 |
W-720 |
P-720* |
| Y-800 |
W-800 |
P-800 |
| Y-896 |
W-896 |
P-896 |
| Y-1000 |
W-1000 |
P-1000 |
| Y-1120 |
W-1120 |
P-1120 |
| Y-1200 |
W-1200 |
P-1200 |
| Y-1280 |
W-1280 |
P-1280 |
| Y-1440 |
W-1440 |
P-1440 |
| Y-1600 |
W-1600 |
P-1600 |
| Y-1792 |
W-1792 |
- |
| Y-2000 |
W-2000 |
- |
| Y-2240* |
W-2240* |
- |
| Y-2400 |
W-2400 |
- |
* Available on request
Standard belt widths 14mm pitch
| B-Blue |
35 |
14 |
9.1 |
5.30 |
| G-Green |
52.5 |
14 |
9.1 |
5.30 |
| O-Orange |
70 |
14 |
9.1 |
5.30 |
| R-Red |
105 |
14 |
9.1 |
5.30 |
Standard belt lengths 14mm pitch
| B-994 |
G-994 |
- |
- |
| B-1120 |
G-1120 |
O-1120 |
- |
| B-1190 |
G-1190 |
O-1190 |
- |
| B-1260 |
G-1260 |
O-1260 |
R-1260 |
| B-1400 |
G-1400 |
O-1400 |
R-1400 |
| B-1568 |
G-1568 |
O-1568 |
R-1568 |
| B-1750 |
G-1750 |
O-1750 |
R-1750 |
| B-1960 |
G-1960 |
O-1960 |
R-1960 |
| B-2100 |
G-2100 |
O-2100 |
R-2100 |
| B-2240 |
G-2240 |
O-2240 |
R-2240 |
| B-2380 |
G-2380 |
O-2380 |
R-2380 |
| B-2520 |
G-2520 |
O-2520 |
R-2520 |
| B-2660* |
G-2660 |
O-2660 |
R-2660 |
| B-2800 |
G-2800 |
O-2800 |
R-2800 |
| B-3136 |
G-3136 |
O-3136 |
R-3136* |
| B-3304 |
G-3304* |
O-3304 |
R-3304* |
| B-3500 |
G-3500* |
O-3500* |
R-3500 |
| B-3920* |
G-3920* |
O-3920 |
R-3920* |
* Available on request
